Tool Vault Elite 55″ x 30″ 10 Drawer Tool Cabinet

For current pricing and availability, please follow this link.

Exclusive to StrictlyToolBoxes.com, our Tool Vault® line of professional toolboxes are crafted to withstand the harshest conditions of a full-time mechanics environment. The ToolVault® brand brings you professional grade tool boxes at D.I.Y. prices, ideal for industry professionals and home enthusiasts.

ManufacturerTool Vault
SKUTV-553010RC
Dimensions54½" W x 30" D x 46¼" H
Shipped Weight832 lbs.
Warranty5 Year Limited Warranty
Drawer Capacity250 lbs / 500 lbs
FinishHigh Gloss Powder Coat

From: $3,595.00

The Tool Vault® line of professional toolboxes are crafted to withstand the harshest conditions of a full-time mechanics environment. The ToolVault® brand brings you professional grade tool boxes at D.I.Y. prices, ideal for industry professionals and home enthusiasts. The Tool Vault® Elite 72 Inch 17 Drawer Tool Cabinet / Roller Cabinet is a professional grade, high-quality toolbox featuring a drawer load rating of 250 pounds (500lb. on larger drawers), heavy-duty spring loaded casters, and full-width wrap around aluminum drawer pulls.



snxp-xn kryptonite

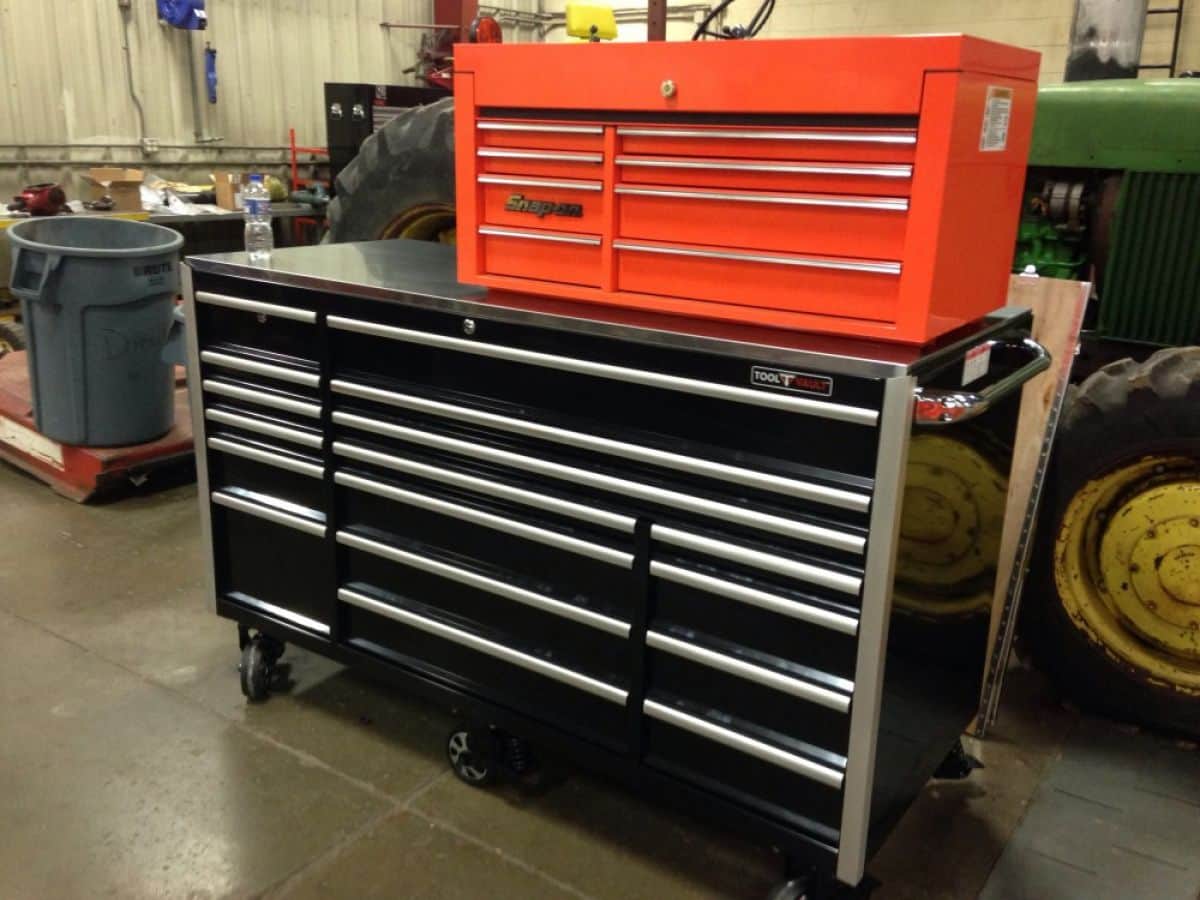

I am a full time diesel mechanic at an International dealership. All 8 other mechanics in my shop have 72″ Snxp-xn boxes with hutches. I have worked out of my buddies 72″ snxp-xn tool box that he wasn’t using for the past 9 months till I could save up enough to buy my own. I stumbled across this site while looking for used tool boxes and was skeptical at first. I did as much research as I could, comparing drawer arrangements, weight ratings, and the gauge of steel used in construction. Finally I ordered a 72″ Montezuma with a stainless top and faultless castors. It arrived 2 days later in great shape…. the packaging was incredibly thorough; 1/4″ plywood outside of 3/4″ styrofoam with thick plastic covering the tool box itself. One look at the tool box and you can tell that these tool boxes are built well. The drawers slide very smoothly and securely on the rollerbearing slides and extend all the way out without being difficult to return inward. The handles that you install on both ends are very classy looking and are very strong. Several items that are different but not necessarily worse than the tool truck boxes are as follows: The stainless top is textured slightly which makes it a little hard to write on, the drawer detents are rather stiff but the tool box has softer spare detent blocks and instructions on how to install them, and all the end castors swivel which make it easy to maneuver but also make the box slightly more difficult to push in a straight line. Things i like about this tool box… the extra security drawer, the great paint job it has, the no-skid drawer liners that come with the tool box, the 2 wide shallow drawers underneath the socket drawer; I use one for wrenches and the other for screwdrivers and pliers, I also like having a handle on each end of the tool box. The thing I like best is that all the other guys in the shop are asking the tool truck dealer why their tool boxes cost so much!!! After seeing my tool box, one of my coworkers said that Snxp-xn is becoming a brand name cult! That said, I have been working out of it for 2 weeks and I love the tool box! All the other guys in the shop have been

ARMYTECH from Lima, OH

Reviews

There are no reviews yet.

Be the first to review “Tool Vault Elite 55″ x 30″ 10 Drawer Tool Cabinet”

Your email address will not be published. Required fields are marked *

Specifications

Product Overview
Manufacturer
Tool Vault
SKU
TV-553010RC
Dimensions
54½" W x 30" D x 46¼" H
Net Weight
776 lbs.
Shipped Weight
832 lbs.
Warranty
5 Year Limited Warranty
Toolbox Construction
Shell Gauge
18
Drawer Gauge
20
Caster Channel Gauge
14
Color
Black, Blue, Lime Green, Orange
Finish
High Gloss Powder Coat
Lock Style
Tubular Coded
Qty Side Handles
2
Work Surface
Stainless Steel Top
Corner Trim
Aluminum
Drawer Information
# of Drawers
10
Sets of Drawer Slides
16
Drawer Liner Type
Premium non-slip Mesh
Drawer Latch Type
Detent Closure
Storage Capacity
Drawer Slide Type
Roller Bearing
Drawer Capacity
250 lbs / 500 lbs
Total Square Inches
8,906
Total Cubic Inches
35,149
Caster Information
# of Casters
4
Caster Capacity
1050 lbs per caster
Caster Type
2 Rigid / 2 Swivel Spring Loaded
Caster Upgrade
N/A

Product Overview

Manufacturer
Tool Vault
SKU
TV-553010RC
Dimensions
54½" W x 30" D x 46¼" H
Net Weight
776 lbs.
Shipped Weight
832 lbs.
Warranty
5 Year Limited Warranty
Product Overview

Toolbox Construction

Shell Gauge
18
Drawer Gauge
20
Caster Channel Gauge
14
Color
Black, Blue, Lime Green, Orange
Finish
High Gloss Powder Coat
Lock Style
Tubular Coded
Qty Side Handles
2
Work Surface
Stainless Steel Top
Corner Trim
Aluminum
Toolbox Construction

Drawer Information

# of Drawers
10
Sets of Drawer Slides
16
Drawer Liner Type
Premium non-slip Mesh
Drawer Latch Type
Detent Closure
Drawer Information

Storage Capacity

Drawer Slide Type
Roller Bearing
Drawer Capacity
250 lbs / 500 lbs
Total Square Inches
8,906
Total Cubic Inches
35,149
Storage Capacity

Caster Information

# of Casters
4
Caster Capacity
1050 lbs per caster
Caster Type
2 Rigid / 2 Swivel Spring Loaded
Caster Upgrade
N/A
Caster Information

Layout

Drawer #
Drawer DimensionsW" x D" x H"
Drawer Capacity
Sets of Drawer Slides
Cubic In
SQ In
TotalN/AN/A1635,4528,906
149.7526.55.25500 lbs.26,9211,318
249.7526.52.25250 lbs.12,9661,318
331.7526.52.25250 lbs.11,893841
41526.52.25250 lbs.1894397
531.7526.55.25500 lbs.24,417841
61526.55.25500 lbs.22,086397
71526.511.25500 lbs.24,472397
