The Tool Vault® line of professional toolboxes are crafted to withstand the harshest conditions of a full-time mechanics environment. The ToolVault® brand brings you professional grade tool boxes at D.I.Y. prices, ideal for industry professionals and home enthusiasts. The Tool Vault® Elite 55 Inch 10 Drawer Tool Cabinet with Hutch and 2 Side Lockers is a professional grade, high quality toolbox featuring a drawer load rating of 250 pounds (500lb. on larger drawers), heavy-duty spring loaded casters, and full-width wrap around aluminum drawer pulls.

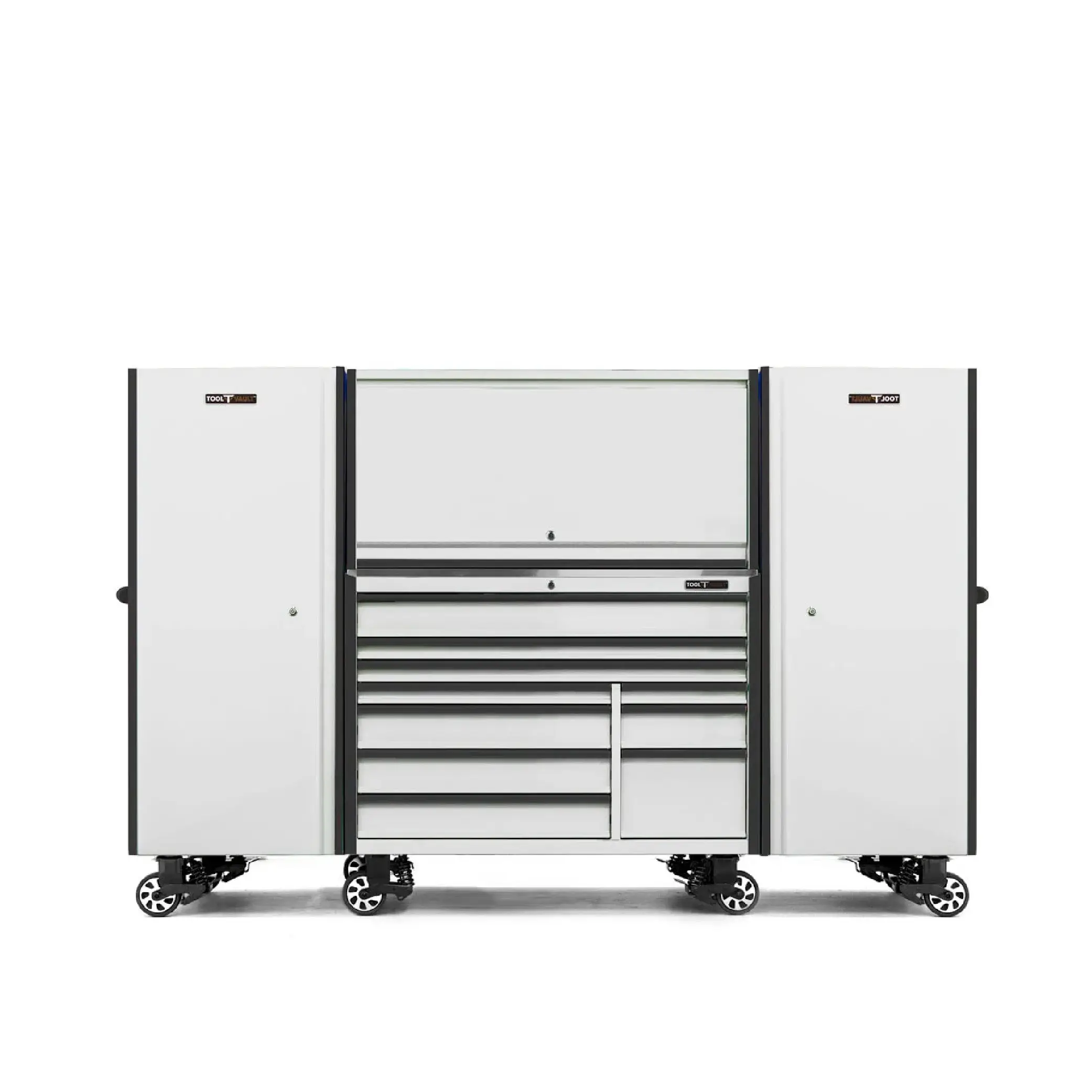

Tool Vault Elite 55″ x 30″ 10 Drawer Tool Cabinet w/ Hutch and 2 Side Lockers
The Tool Vault® line of professional toolboxes are crafted to withstand the harshest conditions of a full-time mechanics environment. The ToolVault® brand brings you professional grade tool boxes at D.I.Y. prices, ideal for industry professionals and home enthusiasts.
| Manufacturer | Tool Vault |
| SKU | TV-55Combo5 |

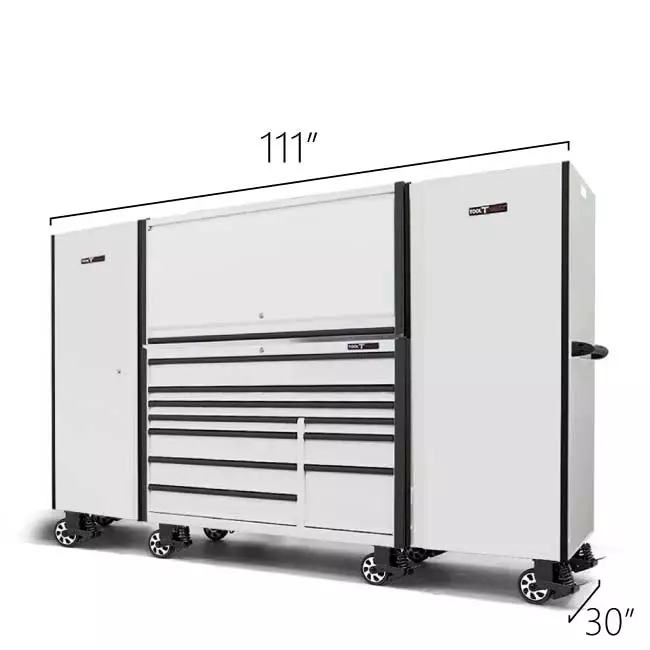

| Dimensions | 92½" W x 30" D x 72¼" H |
| Shipped Weight | 1,812 lbs. |
| Warranty | 5 Year Limited Warranty |
| Drawer Capacity | 250 lbs / 500 lbs |
| Finish | High Gloss Powder Coat |
From: $7,195.00
Specifications
Product Overview
Manufacturer
Tool Vault
SKU
TV-55Combo5
Dimensions
92½" W x 30" D x 72¼" H
Net Weight
1,462 lbs.
Shipped Weight
1,812 lbs.
Warranty
5 Year Limited Warranty
Toolbox Construction
Shell Gauge
18
Drawer Gauge
20
Caster Channel Gauge
14
Color
Black, Blue, Lime Green, Orange
Finish
High Gloss Powder Coat
Lock Style
Tubular Coded
Qty Side Handles
2
Work Surface
Stainless Steel Top
Corner Trim
Aluminum
Drawer Information
# of Drawers
16
Sets of Drawer Slides
21
Drawer Liner Type
Premium non-slip Mesh
Drawer Latch Type
Detent Closure
Storage Capacity
Drawer Slide Type
Roller Bearing
Drawer Capacity
250 lbs / 500 lbs
Total Square Inches
15,319
Total Cubic Inches
140,156
Caster Information
# of Casters
4
Caster Capacity
1050 lbs per caster
Caster Type
2 Rigid / 2 Swivel Spring Loaded
Caster Upgrade
N/A
Product Overview
Manufacturer
Tool Vault
SKU
TV-55Combo5
Dimensions
92½" W x 30" D x 72¼" H
Net Weight
1,462 lbs.
Shipped Weight
1,812 lbs.
Warranty
5 Year Limited Warranty
Toolbox Construction
Shell Gauge
18
Drawer Gauge
20
Caster Channel Gauge
14
Color
Black, Blue, Lime Green, Orange
Finish
High Gloss Powder Coat
Lock Style
Tubular Coded
Qty Side Handles
2
Work Surface
Stainless Steel Top
Corner Trim
Aluminum
Drawer Information
# of Drawers
16
Sets of Drawer Slides
21
Drawer Liner Type
Premium non-slip Mesh
Drawer Latch Type
Detent Closure
Storage Capacity
Drawer Slide Type
Roller Bearing
Drawer Capacity
250 lbs / 500 lbs
Total Square Inches
15,319
Total Cubic Inches
140,156
Caster Information
# of Casters
4
Caster Capacity
1050 lbs per caster
Caster Type
2 Rigid / 2 Swivel Spring Loaded
Caster Upgrade
N/A
Layout
Drawer # | Drawer DimensionsW" x D" x H" | Drawer Capacity | Sets of Drawer Slides | Cubic In | SQ In | ||
|---|---|---|---|---|---|---|---|
| Total | N/A | N/A | 21 | 140,156 | 15,319 | ||
| 1 | 49.75 | 26.5 | 5.25 | 500 lbs. | 2 | 6,921 | 1,318 |
| 2 | 49.75 | 26.5 | 2.25 | 250 lbs. | 1 | 2,966 | 1,318 |
| 3 | 49.75 | 26.5 | 2.25 | 250 lbs. | 1 | 2,966 | 1,318 |
| 4 | 31.75 | 26.5 | 2.25 | 250 lbs. | 1 | 1,893 | 841 |
| 5 | 15 | 26.5 | 2.25 | 250 lbs. | 1 | 894 | 397 |
| 6 | 31.75 | 26.5 | 5.25 | 500 lbs. | 2 | 4,417 | 841 |
| 7 | 15 | 26.5 | 5.25 | 500 lbs. | 2 | 2,086 | 397 |
| 8 | 31.75 | 26.5 | 5.25 | 500 lbs. | 2 | 4,417 | 841 |
| 9 | 15 | 26.5 | 11.25 | 500 lbs. | 2 | 4,472 | 397 |
| 10 | 31.75 | 26.5 | 5.25 | 500 lbs. | 2 | 9,465 | 841 |
| HUTCH | 54 | 30 | 23.125 | N/A | N/A | 37,463 | 2,141 | SIDE LOCKERS |
| 18 | 15 | 26.5 | 2.25 | 250 lbs. | 1 | 894 | 397 |
| 19 | 15 | 26.5 | 2.25 | 250 lbs. | 1 | 894 | 397 |
| 20 | 15 | 26.5 | 11.25 | 250 lbs. | 1 | 4,471 | 397 |
| SHELF 1 | 19 | 30 | 24 | N/A | N/A | 13,680 | 570 |
| SHELF 2 | 19 | 30 | 24 | N/A | N/A | 13,680 | 570 |
| 1 | 15 | 26.5 | 2.25 | 250 lbs. | 1 | 894 | 397 |
| 2 | 15 | 26.5 | 2.25 | 250 lbs. | 1 | 894 | 397 |
| 3 | 15 | 26.5 | 11.25 | 250 lbs. | 1 | 4,471 | 397 |
| SHELF 1 | 19 | 30 | 24 | N/A | N/A | 13,680 | 570 |
| SHELF 2 | 19 | 30 | 24 | N/A | N/A | 13,680 | 570 |
