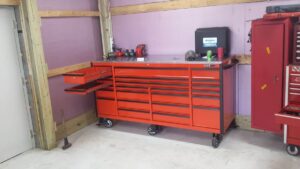

Tool Vault Elite XL 84” 23-Drawer Roller Cabinet Toolbox W/Stainless Steel Top

For current pricing and availability, please follow this link.

The Tool Vault® line of professional tool boxes are crafted to withstand the harshest conditions of a full-time mechanics environment.

ManufacturerTool Vault
SKUTV-843023RC
Dimensions84" W x 30" D x 46¼" H
Shipped Weight1,366lbs
Warranty5 Year Limited Warranty
Drawer Capacity250 lbs / 500 lbs
FinishHigh Gloss Powder Coat

From: $5,995.00

The Tool Vault® line of professional tool boxes are crafted to withstand the harshest conditions of a full-time mechanics environment. The ToolVault® brand brings you professional grade tool boxes at D.I.Y. prices, ideal for industry professionals and home enthusiasts. The Tool Vault® 84 Inch 23 Drawer Tool Cabinet is a high quality toolbox featuring a drawer load rating of 250 pounds (500lb. on larger drawers), heavy-duty spring loaded casters, and full-width locking handle aluminum drawer pulls.

Snapon Quality without the Snappy Price

20+ years of wrenching and having had Matco, Mac and Snapon toolboxes, I have to admit I was skeptical at first (how can they be so much cheaper?), but after much research and reading lots of reviews, I finally decided to order this Tool Vault monster, and was very impressed with the quality and construction. Side by side with my older, smaller Snapon, I have to say this box beats that KRL, as the Tool Vault has reinforcing ribs under the drawers (unlike the KRL). Even heavily loaded drawers (air tool, puller, socket drawer, etc) glide smoothly without binding or twisting. Shipping was fast for where I live (in the sticks), ordered Thursday it arrived Tuesday. Only fault I can point to in the entire process of buying this tool box is when it’s all crated up for shipping is, it’s 8′ long…..and nobody has an 8′ liftgate, and you can’t turn an 8′ skid inside an 8′ trailer. Thankfully I have a forklift, so we were able to use it in conjunction with the liftgate to get it safely on the ground. Driver was very helpful and pointed out a few scuffs on the crating, insisting we uncrate it (I think he was as excited to see this box as I was.) Box arrived in perfect condition.

KQ

Reviews

There are no reviews yet.

Be the first to review “Tool Vault Elite XL 84” 23-Drawer Roller Cabinet Toolbox W/Stainless Steel Top”

Your email address will not be published. Required fields are marked *

Specifications

Product Overview
Manufacturer
Tool Vault
SKU
TV-843023RC
Dimensions
84" W x 30" D x 46¼" H
Net Weight
1,155lbs
Shipped Weight
1,366lbs
Warranty
5 Year Limited Warranty
Toolbox Construction
Shell Gauge
16
Drawer Gauge
18
Caster Channel Gauge
11
Color
Black, Blue, Lime Green, Orange, White
Finish
High Gloss Powder Coat
Lock Style
Tubular Coded
Qty Side Handles
2
Work Surface
Stainless Steel Top
Corner Trim
Aluminum
Drawer Information
# of Drawers
23
Sets of Drawer Slides
36
Drawer Liner Type
Premium non-slip Mesh
Drawer Latch Type
Locking Handle
Storage Capacity
Drawer Slide Type
Roller Bearing
Drawer Capacity
250 lbs / 500 lbs
Total Cubic Inches
52,518
Caster Information
# of Casters
6
Caster Capacity
1050 lbs per caster
Caster Type
2 Rigid / 4 Swivel Spring Loaded
Caster Upgrade
N/A

Product Overview

Manufacturer
Tool Vault
SKU
TV-843023RC
Dimensions
84" W x 30" D x 46¼" H
Net Weight
1,155lbs
Shipped Weight
1,366lbs
Warranty
5 Year Limited Warranty
Product Overview

Toolbox Construction

Shell Gauge
16
Drawer Gauge
18
Caster Channel Gauge
11
Color
Black, Blue, Lime Green, Orange, White
Finish
High Gloss Powder Coat
Lock Style
Tubular Coded
Qty Side Handles
2
Work Surface
Stainless Steel Top
Corner Trim
Aluminum
Toolbox Construction

Drawer Information

# of Drawers
23
Sets of Drawer Slides
36
Drawer Liner Type
Premium non-slip Mesh
Drawer Latch Type
Locking Handle
Drawer Information

Storage Capacity

Drawer Slide Type
Roller Bearing
Drawer Capacity
250 lbs / 500 lbs
Total Cubic Inches
52,518
Storage Capacity

Caster Information

# of Casters
6
Caster Capacity
1050 lbs per caster
Caster Type
2 Rigid / 4 Swivel Spring Loaded
Caster Upgrade
N/A
Caster Information

Layout

Drawer #
Drawer DimensionsW" x D" x H"
Drawer Capacity
Sets of Drawer Slides
Cubic In
SQ In
TotalN/AN/A3652,51812,500
113.5265.25500 lbs.21,843351
247.25265.25500 lbs.26,4501,229
313.5265.25500 lbs.21,843351
413.5262.25250 lbs.1790351
547.25262.25250 lbs.12,7641,229
613.5262.25250 lbs.1790351
713.5262.25250 lbs.1790351
847.25262.25250 lbs.12,7641,229
913.5262.25250 lbs.1790351
1013.5262.25250 lbs.1790351
1122.125262.25250 lbs.11,294575
1222.125262.25250 lbs.11,294575
1313.5262.25250 lbs.1790351
1413.5265.25500 lbs.21,843351
1522.125265.25500 lbs.23,020575
1622.125265.25500 lbs.23,020575
1713.5265.25500 lbs.21,843351
1813.52611.25500 lbs.23,861351
1922.125265.25500 lbs.23,020575
2022.125265.25500 lbs.23,020575
2113.52611.25500 lbs.23,861351
2222.125265.25500 lbs.23,020575
2322.125265.25500 lbs.23,020575
Layout Image
